Models |
BCPP-A1-16 |
BCPP-A2S-32 |
BCPP-AT2S-32 |
BCPP-A2S-40 |
European standard |
American Standard |
|||
Maximun Power |
3.7kw |
7.4kw |
22kw |
9.6kw |
Input/Output Voltage |
AC230 1-Phase |
AC400 3-Phase |
240VAC,1Φ,Max. Max.120V to Ground |
|
Charging Current Range |
8A-16A |
6A-32A |
6A-32A |
6A-40A |
Frequency |
50HZ/60HZ |
|||
Display |
OLED Screen+ LED Light |
Five-inch touch screen + LED Light |
||
Wall-mounted |
X |
√ |
√ |
√ |
Adjustable Current |
√ |
√ |
√ |
√ |
Timed Charging |
√ |
√ |
√ |
√ |
Plug options |
√ |
√ |
√ |
√ |
Weekly Reservation Charging |
X |
√ |
√ |
√ |
History Charging Records |
X |
√ |
√ |
√ |
Bluetooth |
X |
√ |
√ |
√ |
WIFI |
X |
√ |
√ |
√ |
APP |
X |
√ |
√ |
√ |
CP Signal Abnormal Protection |
√ |
√ |
√ |
√ |
Over Voltage Protection |
√ |
√ |
√ |
√ |
Under Voltage Protection |
√ |
√ |
√ |
√ |
Over Current Protection |
√ |
√ |
√ |
√ |
Leakage Protection |
√ |
√ |
√ |
√ |
Over Temperature Protection |
√ |
√ |
√ |
√ |
Relay Adhesion Protection |
√ |
√ |
√ |
√ |
Lightning Protection |
√ |
√ |
√ |
√ |
Fire Protection |
√ |
√ |
√ |
√ |
Anti-pressure Protection |
√ |
√ |
√ |
√ |
Ground Protection |
√ |
√ |
√ |
√ |
Working Life |
<10000 times |
|||
Plug Cable Length |
1m |
|||
Total Length |
7m as standard (Customized length available) |
|||
IP Protection |
IP66 |
|||
Operating Temperature |
-30℃ ~ +50℃ |
|||
Operating Altitude |
<2000m |
Product Features

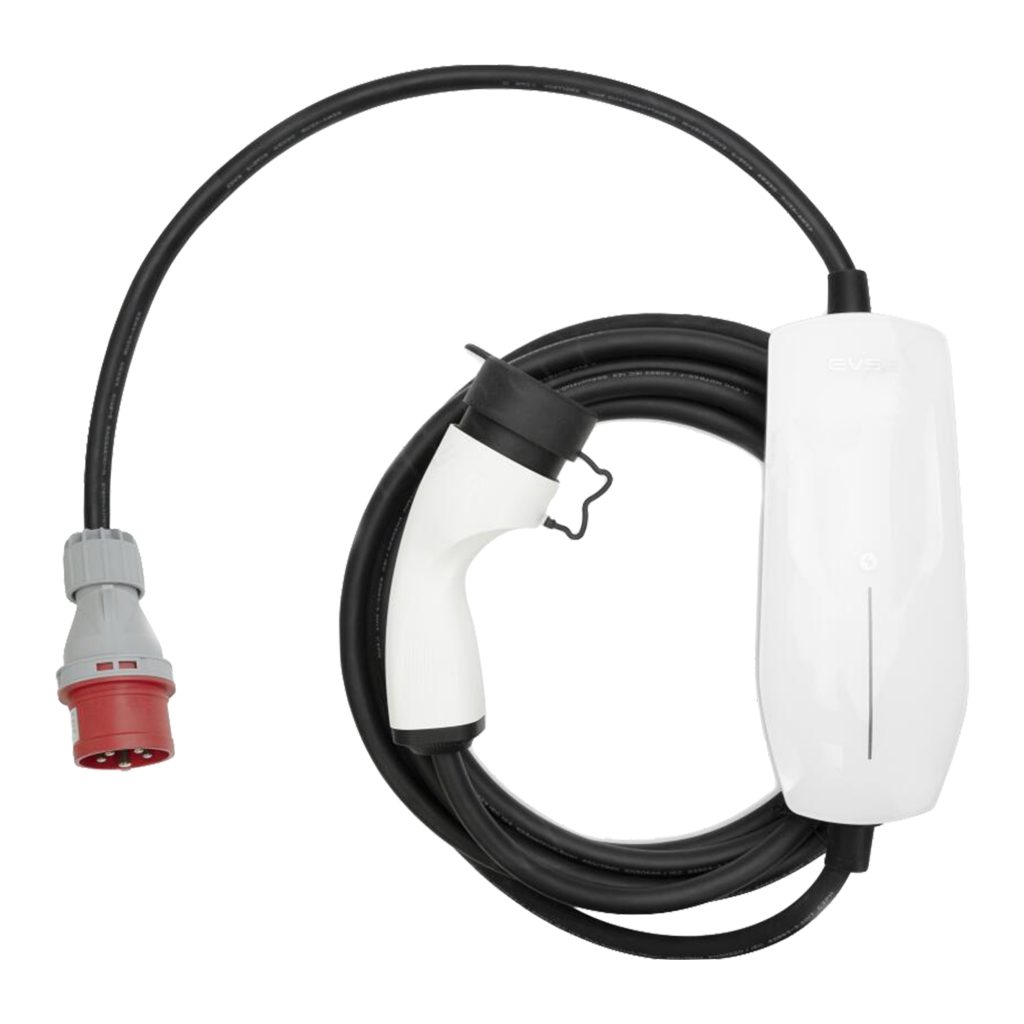

11KW Full of power
The charger can charge in 3-Phase.

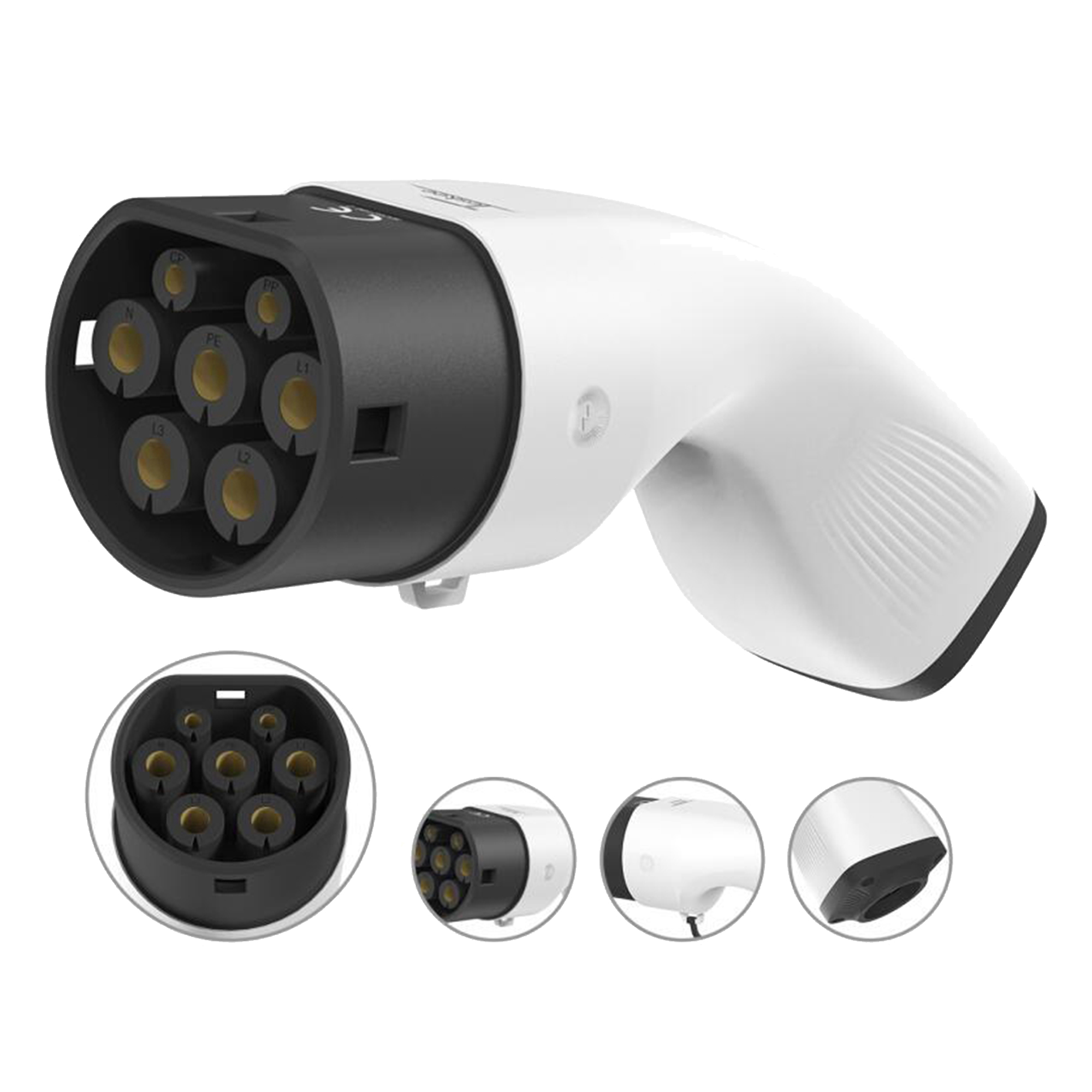

It has a Type 2 standard charging connector.
5xQuick Charge
With P60, you can charge up to
5 times faster than with a regular outlet.
39 Lighter
The Quick charger P60-11KW is 39% lighter than other mobile chargers,
with similar functionality. It weighs only 3.2 kg!
